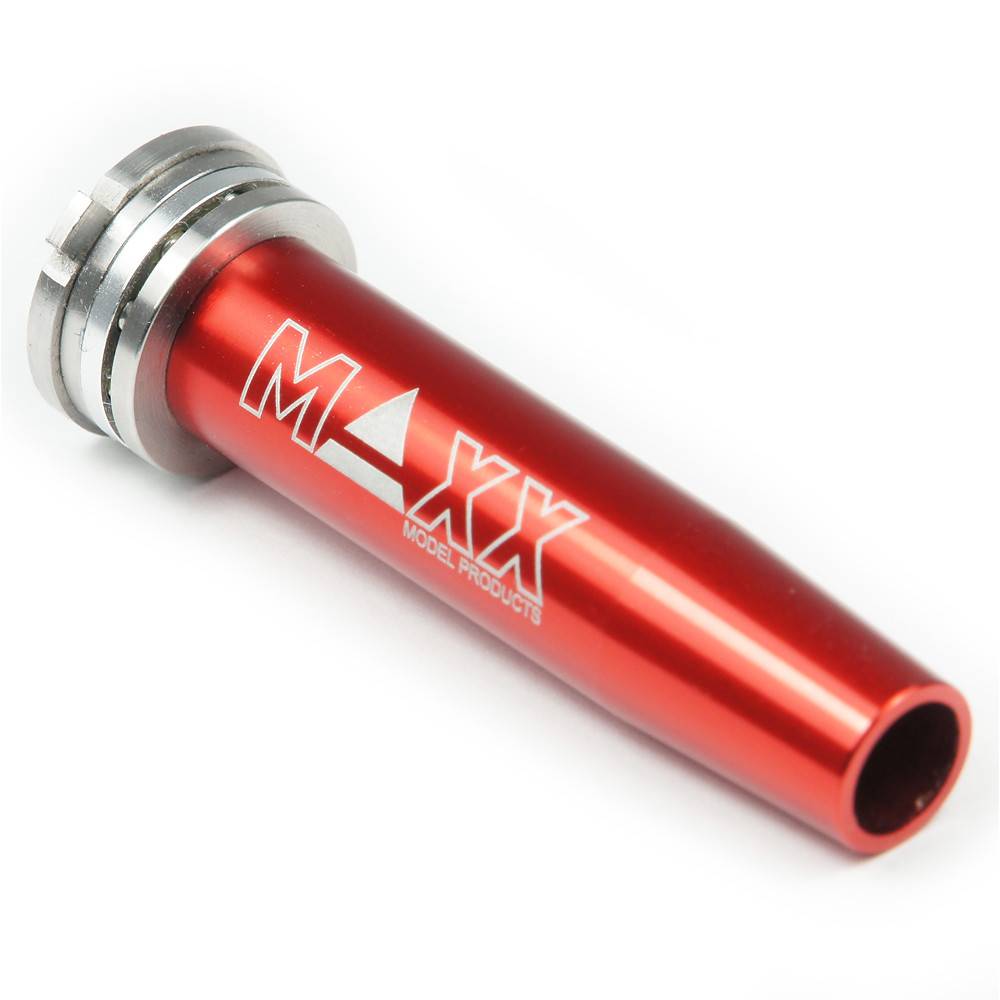

CNC Stainless Steel/Aluminum Spring Guide Thru-Hole

Artikelnummer: CNC Stainless Steel/Aluminum Spring Guide Thru-Hole
Beschikbaarheid: Op voorraad
Levertijd: Direkt Leverbaar

CNC Stainless Steel/Aluminum Spring Guide Thru-Hole

CNC Stainless Steel/Aluminum Spring Guide Thru-Hole is specifically designed for Bolt Recoil Shock System (BRSS) to keep the spring in line and allow the spring to rotate on shaft during high compression.

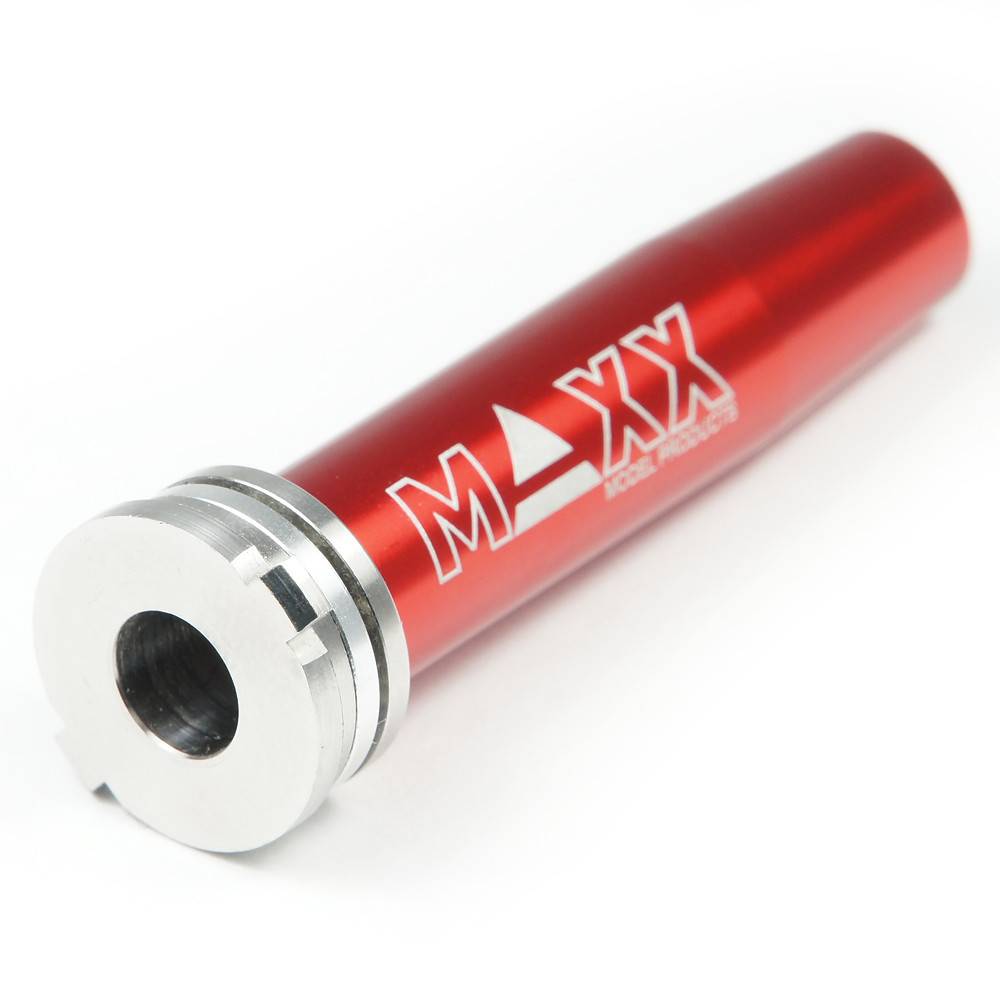

This Spring Guide Thru-Hole is machined with a 6.8mm through hole on stainless steel hub to allow the pushrod to go through thrust bearing and spring guide without any restriction.
The Spring Guide Thru-Hole is also equipped thrust ball bearing to reduce spring stress and breakage during high speed spring compression. Made of Stainless Steel and Aluminum.



  Includes
1 x CNC Stainless Steel/Aluminum Spring Guide Thru-Hole



  Specification
Hub Thru-Hole Diameter: 6.8mm
Hub Outer Diameter: 16mm
Shaft Outer Diameter: 10.8mm
Shaft Inner Diameter: 7mm
Shaft Length: 44.5mm
Overall Length: 51.5mm
Material: Stainless Steel and Aluminum



  Features
Specifically designed for Bolt Recoil Shock System (BRSS)
Stainless Steel and Aluminum construction
Machined 6.8mm through hole on stainless steel hub
Allowed the pushrod to go through thrust bearing and spring guide without any restriction
Equipped thrust ball bearing to reduce spring stress and breakage
Aligned spring in line and rotate on shaft during high compression
Strong stainless steel hub chamfer shoulder designs



  Weight
13.08 grams



  Usage
Used for Bolt Recoil Shock System (BRSS)



  Requires
Wearing eye protection is recommended
Use proper tools for disassembly and reassembly the spring guide with great care due to spring tension
Bearing lubricant oil/grease is recommended for smooth operation



  Instruction
Instruction Manuals are included
