Gate Aster V2 SE Expert + Quantum Trigger - Rear Wired

ASTER V2 SE raises the price-performance ratio by including a Quantum Trigger in the set and new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you new settings such as automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and the new SAFE-SEMI-BINARY selector mode. Calibration, DTC codes—all available just via trigger and selector movement. Additionally, you get the new noise-resistant trigger detection algorithm. ASTER's smart fuse protects your AEG’s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER V2 SE one of the most durable ETUs on the market. ASTER V2 SE is not just a regular ETU/EFCS mosfet. It is a complex system that turns your AEG into future-proof advanced training equipment.

What distinguishes ASTER V2 SE from the competition?

ASTER is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.
‎

What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.

Why ASTER's programming via trigger is user-friendly?

‎
- you do not need to rush
- you can navigate the menu very quickly and efficiently or slowly and calmly
- the colors of the led lights are only a help – you can rely on the vibration of the motor
- in case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App
‎

What is the self-learning automatic pre-cocking?

‎
- thanks to Pre-cocking, you gain trigger reaction similar to real life
- it will automatically set piston position
- it is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH
- it automatically adapts to the battery voltage and rate of fire
- ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch
- Hair-trigger – up to 60 sensitivity in the first millimeter of trigger movement
- Top-notch automatic pre-cocking
- ASTER is resistant to reverse polarity
- You can update its firmware via the Internet
- ASTER is a part of the GATE Ecosystem
- Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge
- Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency
- 3.75 V ready – it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
- Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
- The possibility of using a mechanical trigger lock
- Compatibility with brushless motors

SPECIFICATIONS

Supply Voltage Range

3.75-12.9 V

Current Consumption

23 mA

Low Power Mode

288 µA

Dimensions (Length x Width x Height)

43.8 mm x 28.7 mm x 7.2 mm

Finished Product Weight

22.25 g

Operating Temperature Range

min. -15°C max. + 50°C

Relative Humidity

≤ 80%

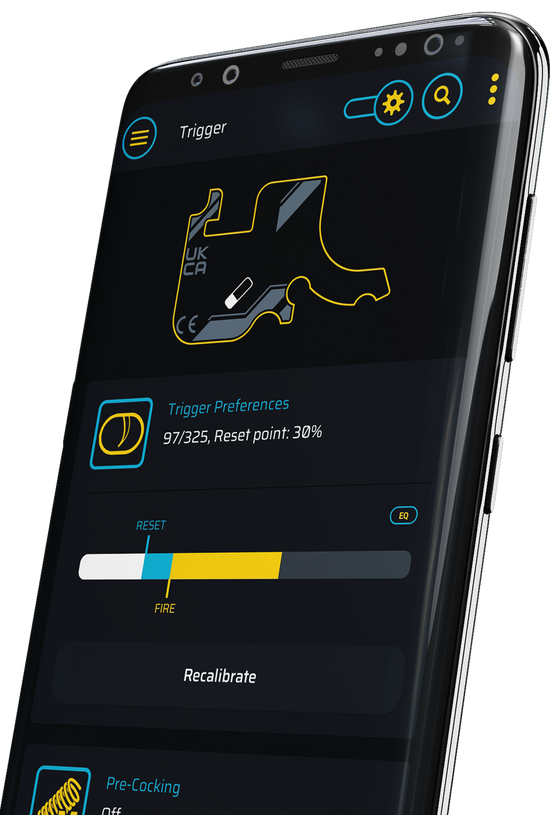

Connect your ASTER V2 SE with the GCS App and get total control of your AEG

You choose how to configure ASTER V2 SE—simply via trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician to update ASTER V2 SE firmware using Blu-Link or USB-Link, carry out diagnostics or change settings in a very convenient way. You can also get your own Blu-Link and use the Smartwatch app, giving you real-time data to reinforce your tactical decisions.

Control your airsoft replica from your iOS, Android, macOS or Windows device using an additional dongle—USB-Link or BluLink
Set trigger sensitivity exactly as you like and adjust other ASTER V2 SE settings in a simple way
Use automatic Pre-Cocking to gain a trigger reaction just like in a real replica

GCS APP

ASTER and GCS App give you total control of your AEG. ㅤ

ㅤ

The GCS offers you the option to:

• Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS

• Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win

• No more surprises with an empty magazine or a discharged battery

• Easily adjust the ASTER settings during the game

• Update and upgrade firmware

• View the BB counters, electrical measurements, and statistics

• Perform diagnostics and send reports

• Get the latest news from GATE Enterprise

ㅤ

Download GCS App

FEATURES

SELECTOR MODES

Two selector sensors allow you to take advantage of hundreds of selector mode variations, depending on firmware edition. The following modes are available for selection*:

SAFE – prevents your replica from firing, even if the safety lever is removed

SEMI – allows you to fire one shot per one trigger pull

BINARY – allows for firing one shot on the trigger pull and another shot upon release

BURST – enables you to shoot a predetermined number of BBs, which is very useful in MilSims and when using low-caps; there are 2 BURST Modes available:

Full – a burst is shot in full, even if the trigger is released before the preset number of BBs has been shot
Interruptible – the burst can be interrupted by releasing the trigger earlier - when the trigger is released, the shooting stops even if not all the BBs from the burst have been shot

BURST/AUTO – available in Full BURST Mode only; allows for extending a burst by any number of shots – if you hold the trigger after the burst is shot, it switches to AUTO Mode

AUTO – shots are fired as long as the trigger is pulled

SEMI RAMPING – if you pull the trigger very fast, it switches to AUTO Mode

*You can check selector configuration possibilities provided by particular Firmware Editions here

Please note: In the case of Regional Lock, only SEMI Mode is available. Check law restrictions in your country.

2-STAGE TRIGGER

PRE-COCKING

MAGAZINE

SERIES SAFETY LIMIT

SNIPER DELAY

ROF CONTROL

SMART TRIGGER

BATTERY PROTECTION & WARNINGS

ACTIVE BRAKE

EQUALIZER

CYCLE DETECTION

DIAGNOSTICS

USER PROFILES

MOSFET

BUILT-IN SELF-TEST

COATING

14.8 V Li-Po READY

What makes ASTER V2 SE so special?

- Everything you need out-of-the-box
- Quantum Trigger included in the kit
- No need to use USB-Link for installation and configuration
- New noise-resistant trigger detection algorithm
- Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement
- Additional protection against interferences thanks to multi-layer PCB with EMC shield
- Automatic Pre-Cocking: LOW / MID / HIGH
- Trigger sensitivity adjustment without any limitation
- Improved cycle detection
- Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF
- New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO
- GCS App allows for making firmware updates via the internet, which enables quick applying of improvements

Specification

Support for high-tuned AEGs
Conformal coating (Military Specification MIL-V-173C) – resistance to atmospheric conditions

	ASTER V2	ASTER V3
Supply Voltage Range	3.75-12.9 V (1.2V during the shot)
Current Consumption	23 mA	26 mA
Low Power Mode	288 µA	285 µA
Dimensions (Length x Width x Height)	43.8 mm x 28.7 mm x 7.2 mm	73.5 mm x 24 mm x 12.5 mm
Finished Product Weight	22.25 g	26 g
Operating Temperature Range	min. -15°C max. + 50°C
Relative Humidity	≤ 80%
